Configuration

Definition

The Quorum Server configuration includes adding the Quorum Server IPs for the connection to the devices, signing the certificates from the storage devices to ensure a safe connection and whitelisting the storage devices in the Quorum.

IP Adding

  1. Access the Quorum Server: qsadmin
  2. Add the IP(s) of the Quorum Server: add server ip XX.XX.XX.XX
  3. Check for the IPs inside the Quorum Server: show server_ip

Certificate Signing

  1. Access the Storage Device(s) that will connect to the Quorum Server through DeviceManager

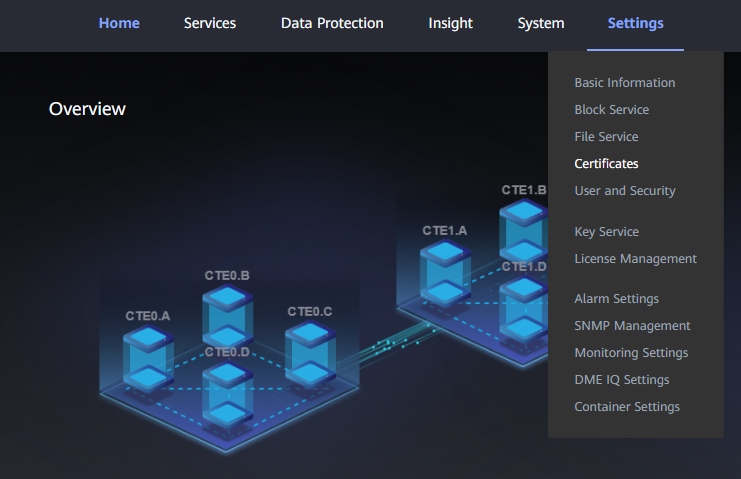

  2. Access Settings > Certificates in DeviceManager QuorumServerConfig_001.png

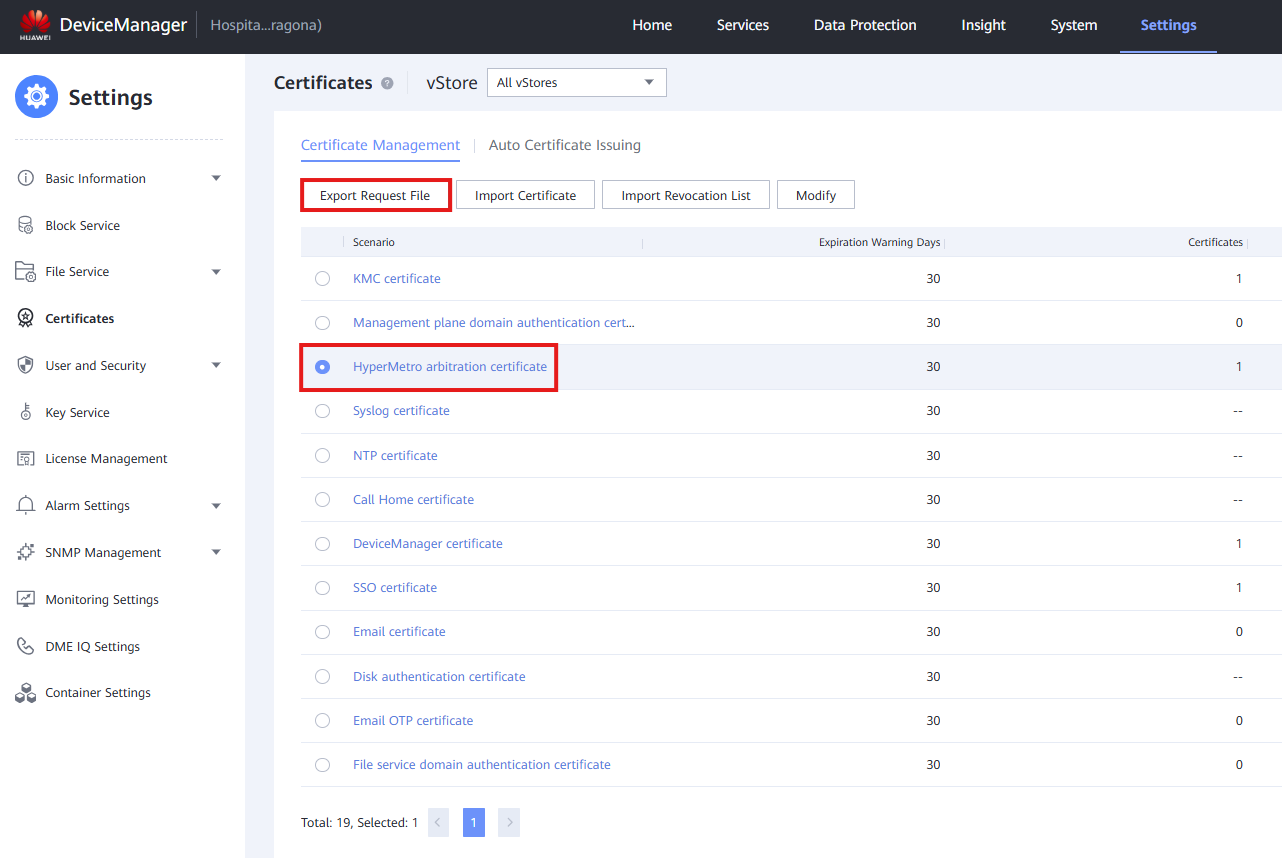

  3. Select 'HyperMetro arbitration certificate' and Export Request File QuorumServerConfig_002.png
  4. Move the .csr file generated to the Quorum Server VM: /opt/quorum_server/export_import
  5. Give permissions to the file for the Quorum Server: chown quorumsvr:quorumsvr FILENAME.csr
  6. Sign the .csr file and generate the CA .crt file: generate tls_cert csr=FILENAME.csr cert_name=FILENAME.crt
  7. Obtain the CA file (cps_ca.crt) and the signed HyperMetro arbitration certificate (FILENAME.crt) from the /opt/quorum_server/export_import directory
  8. Access Settings > Certificates in DeviceManager for the Storage Device

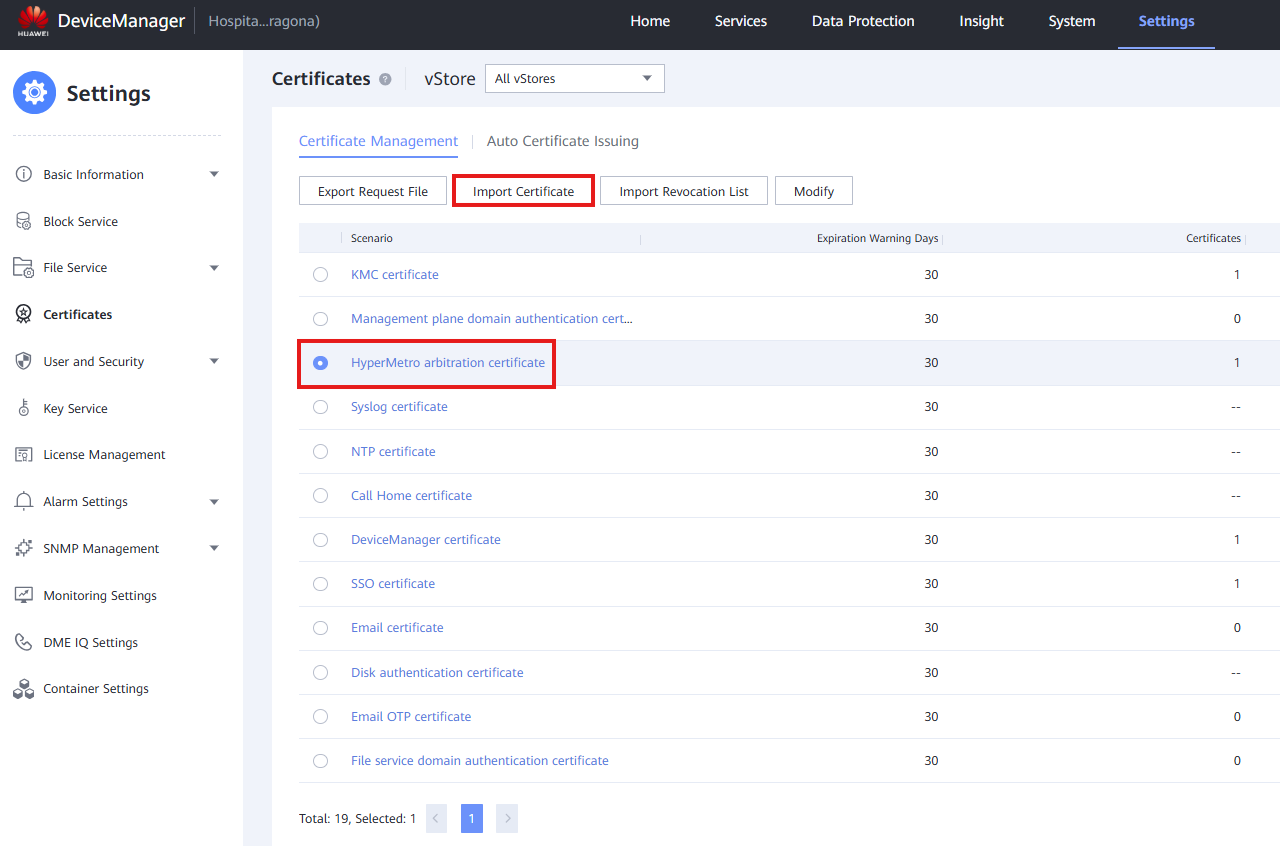

  9. Select 'HyperMetro arbitration certificate' and Import Certificate QuorumServerConfig_003.png
  10. Upload 'Certificate File' as the signed HyperMetro arbitration certificate (FILENAME.crt)
  11. Upload 'CA Certificate File' as the trusted entity signature (cps_ca.crt) QuorumServerConfig_004.png
  12. Press OK and finish the certificate signing process

Device Whitelisting

  1. Access the Quorum Server: qsadmin
  2. Query the certificate ID and record the 'Cert id' value: show tls_cert QuorumServerConfig_005.png
  3. Whitelist the Storage Device(s): add white_list sn=xxxxxxxxxxxxx cert_id=0
